Product Description:
Equipped with a robust control system, this furnace features PLC control for seamless operation and precise temperature regulation. The Four Sections Aluminum Brazing Furnace is capable of reaching temperatures between 650-700 degrees, ensuring optimal brazing conditions for aluminum components.
One of the key features of this furnace is its nitrogen consumption, which ranges from about 35 to 45m3/h. This makes it a cost-effective and efficient option for industrial applications requiring controlled atmospheres during the brazing process.
The maximum height of workpieces that can be accommodated in this furnace is 250mm, making it suitable for a wide range of aluminum brazing applications. Whether you are working with small components or larger parts, this furnace provides ample space and flexibility to meet your needs.
Constructed with high-quality materials, the mesh belt of this furnace is made from 316L stainless steel braided, ensuring durability and longevity in demanding industrial environments. This material choice also enhances the overall performance and reliability of the furnace, making it a valuable investment for your operation.
The Four Sections Aluminum Brazing Furnace is designed for continuous operation, making it suitable for high-volume production requirements. Its tunnel-type design allows for seamless loading and unloading of workpieces, streamlining the brazing process for increased efficiency and productivity.
Featuring a natural gas heating system, this furnace provides consistent and uniform heating throughout the brazing cycle, ensuring high-quality results for your aluminum components. The spray drying and air cooling area further enhance the brazing process, optimizing the overall quality and integrity of the finished products.
In summary, the Four Sections Aluminum Brazing Furnace offers a comprehensive solution for aluminum brazing applications, combining advanced features, precision control, and durable construction to meet the demands of modern industrial operations. With its 250mm maximum height capacity, 35-45m3/h nitrogen consumption, and continuous tunnel design, this furnace is an ideal choice for achieving superior results in aluminum radiator brazing and other critical applications.
Features:
- Product Name: Aluminum Brazing Furnace
- Size: Customized
- Mesh belt transmission speed: 200—1500mm/min (Continuously Adjustable)
- Control System: PLC Control
- Heating Temperature: 600-650℃
- Power Supply: AC380V
Technical Parameters:
| Nitrogen consumption |
About 35-45m³/h |
| Rated power of Drying zone |
103.45KW |
| Heating up time |
0.5-1h |
| Heating Time |
2-3min |
| Size |
Customized |
| Maximum height of workpiece |
250mm |
| Face height of mesh belt |
900mm |
| Material of Mesh belt |
316L Stainless Steel Braided |
| Power Supply |
AC380V |
| Cooling Method |
Air Cooling |
Applications:
Sunhope Aluminum Brazing Furnace is a high-quality industrial equipment designed for various product application occasions and scenarios. With its exceptional features and specifications, this product is ideal for a wide range of manufacturing processes.
The Sunhope Aluminum Brazing Furnace, originating from Guangdong, China, is equipped with a durable 316L Stainless Steel Braided mesh belt, making it suitable for continuous operation. The furnace has a maximum workpiece height of 250mm, allowing for the brazing of larger components with ease.
The mesh belt transmission speed of 200—1500mm/min, continuously adjustable, ensures efficient and precise operation during the brazing process. The heating method of the brazing section utilizes plug-in heating elements, providing uniform and consistent heat distribution for optimal brazing results.
One of the key application scenarios for this furnace is the Four Sections Aluminum Brazing Furnace operating at temperatures between 650-700 degrees. This setup is perfect for achieving precise brazing results in a controlled environment.

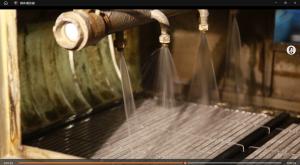

Furthermore, the furnace features a Spray Drying Air Cooling Area, which facilitates rapid cooling of the brazed components, ensuring quick production turnaround times. The air cooling method employed by the furnace enhances efficiency and productivity in the manufacturing process.
Whether used as a standalone unit or as part of a production line, the Sunhope Aluminum Brazing Furnace is versatile and reliable. Its continuous tunnel type design makes it suitable for various industries requiring natural gas brazing ovens for their manufacturing operations.
Customization:
Product Customization Services for Sunhope Aluminum Brazing Furnace:
- Brand Name: Sunhope
- Place of Origin: Guangdong, China
- Cooling Method: Air Cooling
- Nitrogen Purity: Above 99.9995%
- Heating up time: 0.5-1h
- Power Supply: AC380V
- Heating Temperature: 600-650℃
Key Features: Four Sections Aluminum Brazing Furnace 650-700 Degree Spray Drying Air Cooling Area, Continuous tunnel type Natural gas brazing oven
